- Máy bơm phân đoạn 5 tầng làm sạch chất lỏng bơm
- Thông lượng cao, phiên bản 9600 watt có sẵn
- Khả năng chịu áp lực cao
- Bảo vệ nhiệt đầy đủ
- Bộ phận làm đầy và xả cho bơm dầu
- Thước ngắm giúp quan sát tình trạng chất lỏng mọi lúc
- Cổng đo tiêu chuẩn (NW-25) dưới mặt bích đầu vào
- Vách ngăn foreline chống rò rỉ vào hệ thống bơm hỗ trợ
- Vách ngăn sáng tùy chọn giảm rò ngược mà ảnh hường tới chiều cao
- Cuộn làm mát cấp tốc tùy chọn
[/porto_ultimate_heading][vc_separator color="custom" style="solid" accent_color="#dddddd"][/vc_column_inner][/vc_row_inner][vc_row_inner css=".vc_custom_1589991781482{margin-bottom: 30px !important;}" el_id="How-It-Works"][vc_column_inner][porto_ultimate_heading main_heading="NGUYÊN LÝ VẬN HÀNH" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" main_heading_margin_bottom="5"][/porto_ultimate_heading][vc_separator color="custom" style="solid" accent_color="#dddddd"][/vc_column_inner][/vc_row_inner][vc_row_inner css=".vc_custom_1589991754794{margin-bottom: 30px !important;}" el_id="Technology"][vc_column_inner][porto_ultimate_heading main_heading="CÔNG NGHỆ" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" main_heading_margin_bottom="5"][/porto_ultimate_heading][vc_separator color="custom" style="solid" accent_color="#dddddd"][/vc_column_inner][/vc_row_inner][vc_row_inner css=".vc_custom_1589991816578{margin-bottom: 30px !important;}" el_id="Specifications"][vc_column_inner][porto_ultimate_heading main_heading="THÔNG SỐ KỸ THUẬT" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" main_heading_margin_bottom="5"]

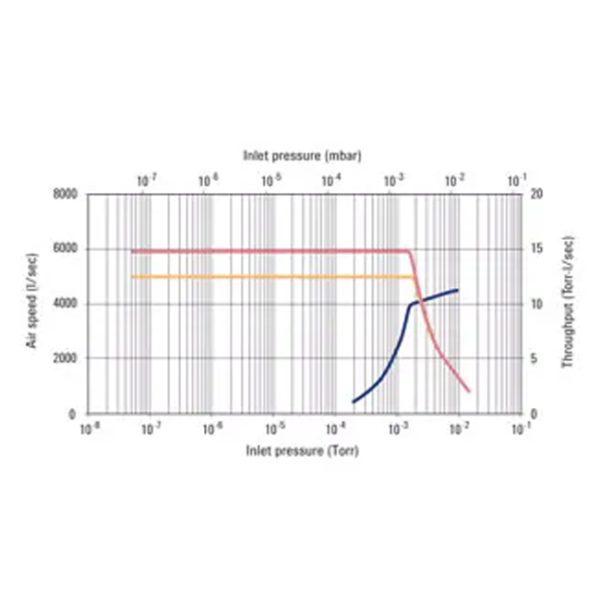

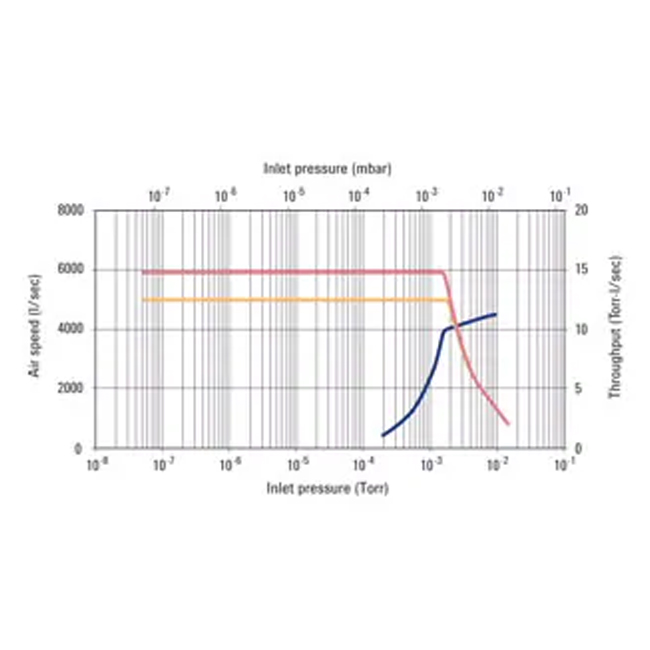

Tốc độ bơm, phạm vi hoạt động |
4,500 l/sec với không khí, 5,625 l/s He và H2 |
Thông lượng tối đa |
8,100 W – 9.5 T-l/s (12.7 mbar l/s) trong khoảng 13.5 T-l/s (18.0 mbar-l/s) @ 0.01 Torr
9,600 W –12.0 T-l/s (16 mbar l/s) trong khoảng 11.5 T-l/s (15.3 mbar-l/s) @ 0.01 Torr |
Phạm vi hoạt động |
2 x 10-3 tới <5 x 10-8 Torr ở 9,600 W (1.3 x 10-3 tới <6.5 x 10-8 mbar) |
Áp suất sơ cấp tối đa |
Không tải: 0.65 torr (0.85 mbar)
Có tải: 0.55 torr (0.72 mbar) |
Bơm hỗ trợ đề xuất |
≥ 80 cfm (136 m3/hr) |
Tỷ lệ ngược dòng, nắp lạnh tiêu chuẩn |
<1.5 x 10-3 mg/cm2/min |
Thời gian khởi động |
30 phút |
Thời gian chờ |
48 phút (30 phút với cuộn làm mát tùy chọn) |
Chất lỏng sử dụng |
3 quarts (2.8 liters) |
Nguồn điện |
3 ph, 50/60 Hz, 240/415/480 VAC |
Tản nhiệt nước |
1.5 gpm (300 l/hr) ở 60-80 °F (15-26 °C) |
Kết nối nước |
1⁄4 in. FPT Tee |
Chất lỏng đề xuất |
DC-704 |
