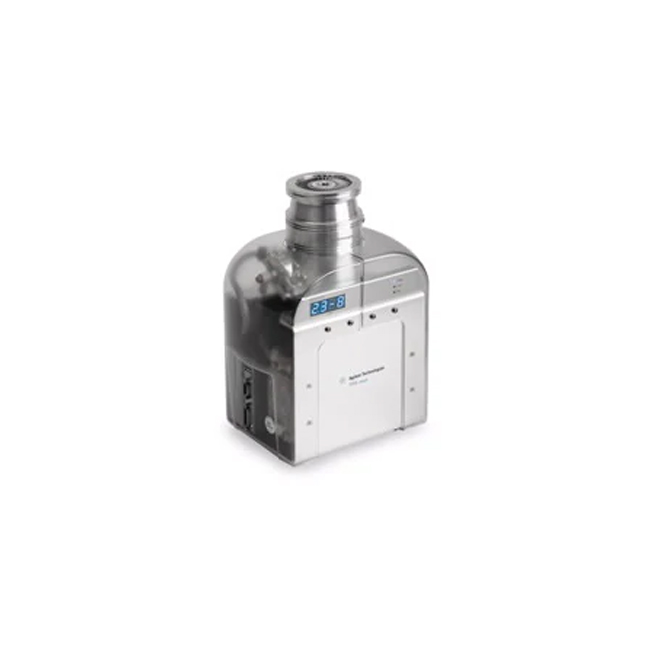

- Bơm TwisTorr 84 FS thế hệ mới
- Kích thước nhỏ nhất, khối lượng nhẹ nhất, sạch sẽ và hệ thống mạnh mẽ
- Điện áp quốc tế (90 V/240 V) – chứng chỉ CE/CSA
- Giao tiếp nối tiếp hoặc analog, điểm đặt áp suất và analog
- Phạm vi đầu đo lớn
- Hiển thị cơ sở dữ liệu áp suất lớn
[/porto_ultimate_heading][vc_separator color="custom" style="solid" accent_color="#dddddd"][/vc_column_inner][/vc_row_inner][vc_row_inner css=".vc_custom_1589991781482{margin-bottom: 30px !important;}" el_id="How-It-Works"][vc_column_inner][porto_ultimate_heading main_heading="NGUYÊN LÝ VẬN HÀNH" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" main_heading_margin_bottom="5"][/porto_ultimate_heading][vc_separator color="custom" style="solid" accent_color="#dddddd"][/vc_column_inner][/vc_row_inner][vc_row_inner css=".vc_custom_1589991754794{margin-bottom: 30px !important;}" el_id="Technology"][vc_column_inner][porto_ultimate_heading main_heading="CÔNG NGHỆ" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" main_heading_margin_bottom="5"][/porto_ultimate_heading][vc_separator color="custom" style="solid" accent_color="#dddddd"][/vc_column_inner][/vc_row_inner][vc_row_inner css=".vc_custom_1589991816578{margin-bottom: 30px !important;}" el_id="Specifications"][vc_column_inner][porto_ultimate_heading main_heading="THÔNG SỐ KỸ THUẬT" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" main_heading_margin_bottom="5"]
|

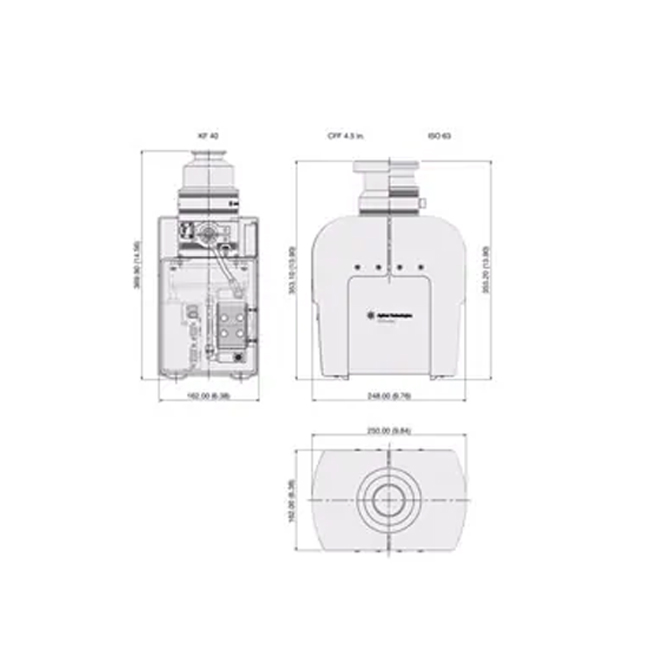

KF40 |
ISO63 |
CFF 4 1/2" |
|

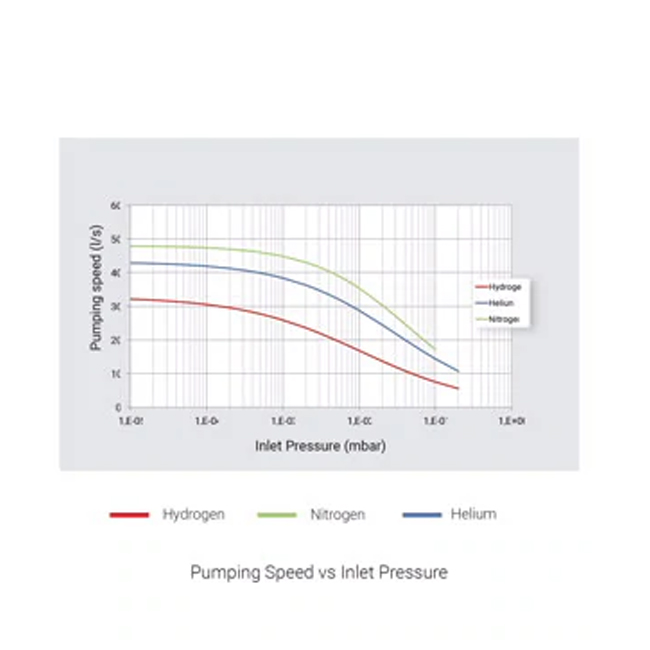

Tốc độ bơm (l/s) (hiển thi đầu vào) |
N2 |
38 |
52 |
52 |
He |
30 |
50 |
50 |
H2 |
24 |
35 |
35 |
Áp suất tối đa* |
|
2 x 10-7 mbar |
2 x 10-7 mbar |
5 x 10-8 mbar |
Nhiệt độ nung chân không |
|
80 °C ở đầu vào |
80 °C ở đầu vào |
120 °C ở đầu vào |
Khối lượng đóng gói kg (lbs.) |
|
7.9 kg (17.4 lbs) |
7.5 kg (16.4 lbs) |
8.8 kg (19.4 lbs) |
Thời gian hút (thể tích 1 l) |
60 giây (17 mbar); 114 giây (1 x 10-4 mbar); 140 giây (5 x 10-5 mbar) |
|
|
|
Tốc độ quay bơm Turbo |
81,000 rpm |
|
|
|
Thời gian khởi động |
122 giây |
|
|
|
Tư thế vận hành |
Vertical, Horizontal, Upside down position |
|
|
|
Nhiệt độ xung quanh khi vận hành |
5 °C to 35 °C / 32 °F to 122 °F |
|
|
|
Điện áp và tần suất đầu vào |
90V to 240V AC; 50 Hz / 60 H |
|
|
|
Công suất đầu vào tối đa |
220 VA |
|
|
|
Lắp đặt giao diện |
Cáp RS-232, đầu nối 9-pin D-type đực, đầu nối 9-pin D-type cái, phần mềm T-Plus Navigator |
|
|
|
