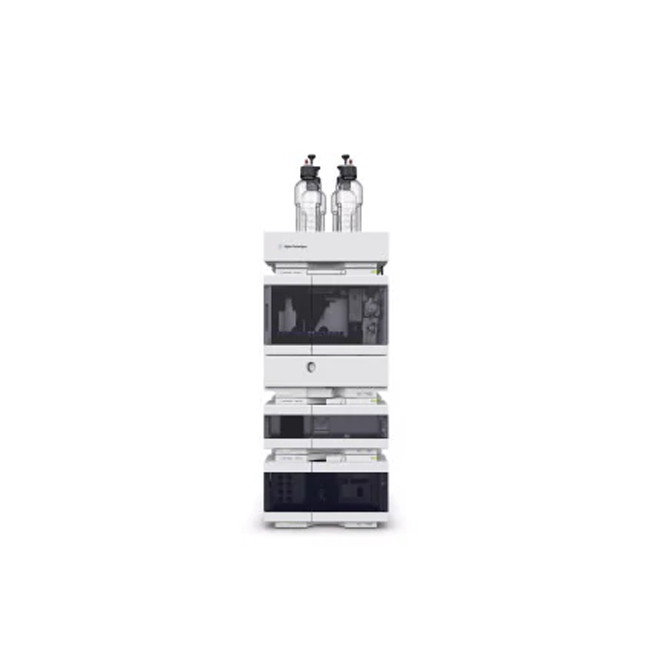

1260 Infinity II LC System

The 1260 Infinity II LC System is a robust HPLC that offers the widest choice of modules for analytical HPLC and entry-level UHPLC, delivering the performance, reliability, and robustness you need for highest confidence in your daily results.

Building on the history of the 1100 and 1200 series analytical HPLC, the 1260 Infinity II LC delivers robust HPLC results while delivering several ease-of-use features, making it the standard system for routine analysis. Mix and match new modules with existing instrumentation to maximize uptime and minimize disruption.

Product details Related Product

Features

[vc_row][vc_column width="1/4" is_sticky="yes" sticky_min_width="767" sticky_top="110" sticky_bottom="0"][porto_ultimate_heading main_heading="Product Details" main_heading_font_weight="" sub_heading_font_weight="" alignment="left"][/porto_ultimate_heading][porto_sidebar_menu nav_menu="26"][/vc_column][vc_column width="3/4"][vc_row_inner el_id="Features" css=".vc_custom_1588955131902{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Features" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" main_heading_margin_bottom="5" line_width="100" spacer_margin_bottom="20"]

    • Compatible with conventional and ultrahigh performance LC: 1260 Infinity II Quaternary Pump and 1260 Infinity Binary Pump operate up to 600 bar, a perfect match for our InfinityLab Poroshell 120 columns
    • Analytical and semipreparative purifications: wide flow range of the 1260 Infinity II Quaternary Pump (up to 10 mL/min) perfectly supports standard and semipreparative applications
    • Fast and precise gradients: 1260 Infinity II Binary Pump is the perfect choice for fast and precise gradients using LC/MS, as well as UV-only systems
    • Ultralow carryover: multiwash capability of the 1260 Infinity II Multisampler cleans all relevant injection parts between runs, flushing the injection needle outside with three solvents using seat backflush procedures to reduce carryover to less than 10 ppm
    • Reduced cycle times: with the unique Agilent dual-needle design, run samples alternately through one or the other injection path. Can reduce cycle times to mere seconds, virtually eliminating conventional wait times - whether for large volume loadings or flushing procedures
    • Efficient sample handling and logistics: using shallow well-plate drawers, 1260 Infinity II Multisampler takes a maximum load of 16 microtiter plates and up to 6,144 samples - the most of any single system
    • Efficient column handling and temperature control: 1260 Infinity II Multicolumn Thermostat holds up to four columns with direct access to each column through a Quick-Change switching valve, delivering flexibility and eliminating the need to disconnect and reconnect columns
    • Higher quality data: 1260 Infinity II Diode Array Detector HS delivers lower detection limits and higher data quality for more confidence
    • Efficient control, acquisition, and reporting: Agilent instrument control framework (ICF) enables smooth control of Agilent LC instrumentation through third-party chromatography data systems
[/porto_ultimate_heading][vc_separator style="solid"][/vc_column_inner][/vc_row_inner][vc_row_inner el_id="Specifications" css=".vc_custom_1589705535492{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Specifications" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" line_width="100" spacer_margin_bottom="20" main_heading_margin_bottom="5"]
Biocompatible
  • No
Bioinert
  • No
Column Capacity
  • 4
Column ID Reader Option
  • Optional
Depth
  • 468 mm
Flow Range
  • 0.05 to 5 mL/min with G7112B
  • 0.2 to 10 mL/min with G7110B, G7111A, G7111B
Injection Range
  • 0.1-100 µL
  • 0.1-900 µL with Extended Injection Range Option
  • 0.1 to 1800 µL with Multi Draw Kit
Intelligent System Emulation Technology
  • No
Line Voltage
  • 100-240 VAC
Maximum Number of Solvents
  • 4
  • up to 15 with additional Solvent Selection Valve
Maximum Number of Temperature Zones
  • 2 with G7116A/B
  • 1 with Vial Sampler with Integrated Column Compartment
Pump Type
  • Isocratic
  • Binary
  • Quaternary
  • Gradient
System Pressure Operating Range
  • up to 600 bar
Width
  • 435 mm
[/porto_ultimate_heading][vc_separator style="solid"][/vc_column_inner][/vc_row_inner][vc_row_inner el_id="Literature" css=".vc_custom_1588988346649{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Literature" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" line_width="100" spacer_margin_bottom="20" main_heading_margin_bottom="5"][/porto_ultimate_heading][porto_toggles type="toggle-simple" size="toggle-sm"][vc_toggle title="Key Literature" css=".vc_custom_1589706417006{padding-right: 30px !important;padding-left: 30px !important;}"]

Detection, Confirmation, and Quantitation of Chloramphenicol in Honey

Describes use of the Agilent 1260 Infinity II LC with the Agilent Ultivo LC/TQ to achieve very low picogram quantities of chloramphenicol in honey samples.

The LC Side of "Do More with Less"

This eBook features unique Agilent InfinityLab LC Solutions developed to solve the everyday, but certainly not “routine”, problems in the modern laboratory.

Agilent 1260 Infinity II LC Brochure

The Agilent 1260 Infinity II LC offers the broadest choice of instrumentation while giving you the best operational efficiency – every day in every way

[/vc_toggle][vc_toggle title="Application Notes" css=".vc_custom_1589706449612{padding-right: 30px !important;padding-left: 30px !important;}"]

Analysis of Monoclonal Antibody N-glycans by Fluorescence Detection and Mass Selective Detection Using LC/MSD XT

This app note demonstrates the performance of an Agilent LC/MSD to solve ambiguous peak assignments for the analysis of N-glycosylation of therapeutic proteins

Determination of UV Filters in Sunscreens Using Captiva EMR-Lipid Cleanup by HPLC

In this application note, a robust method is developed and validated to prepare samples followed by quantitative analysis of the active UV filter ingredients in suncare products.

Fast and Simple Protein Molecular Weight Confirmation Using the Agilent InfinityLab LC/MSD XT Mass Selective Detector

Presents a method for protein analysis using an Agilent LC/MSD XT and 1260 Infinity II LC.

[/vc_toggle][vc_toggle title="Brochures" css=".vc_custom_1589706464760{padding-right: 30px !important;padding-left: 30px !important;}"]

Agilent InfinityLab LC Solutions

Reliable, efficient, always innovating for your best result. Learn more about our comprehensive portfolio of Agilent InfinityLab LC Solutions.

Agilent InfinityLab LC Series - Efficient LC solutions for any application and budget

From routine analysis to cutting-edge research, the Agilent InfinityLab LC Series offers the broadest portfolio of HPLC solutions.

[/vc_toggle][vc_toggle title="Flyers" css=".vc_custom_1589706484023{padding-right: 30px !important;padding-left: 30px !important;}"]

Agilent InfinityLab LC Series Instruments Are Now Within Your Reach.

Lower pricing is just the beginning. Need efficient LC technology that keeps repair costs and downtime to a minimum? Want to be part of a group of chemists who benefit from insights that optimize lab operations? There’s never been a better time to choose Agilent.

Version Europe - Now Is the Perfect Time to Refresh Your LC Technology

Make a smooth transition with the Agilent 1200 Series LC refresh program

Hong Kong Version - Now Is the Perfect Time to Refresh Your LC Technology

Make a smooth transition with the Agilent 1200 Series LC refresh program

Now Is the Perfect Time to Refresh Your LC Technology

Make a smooth transition with the Agilent 1200 Series LC refresh program

Keep on Running - Special Limited Time Offer on the New Agilent 1260 Infinity II LC

Special training offer for Academia when purchasing Agilent 1260 Infinity II LC.

[/vc_toggle][vc_toggle title="Posters" css=".vc_custom_1589706498772{padding-right: 30px !important;padding-left: 30px !important;}"]

LC Troubleshooting Guide

This poster will become the most helpful quick reference tool in your lab. It includes detailed information on how to overcome the most common troubleshooting issues.

[/vc_toggle][vc_toggle title="Selection Guides" css=".vc_custom_1589706517915{padding-right: 30px !important;padding-left: 30px !important;}"]

Agilent InfinityLab LC Series Selection Guide

This Selection Guide gives a current overview of the available systems, solutions and modules of the Agilent InfinityLab LC Series.

[/vc_toggle][vc_toggle title="Technical Overviews" css=".vc_custom_1589706529380{padding-right: 30px !important;padding-left: 30px !important;}"]

Method Transfer from an 1100 Series Quaternary LC to a 1260 Infinity II LC

Method transfer from an 1100 Series Quaternary LC to a 1260 Infinity II LC showing equivalency for the analysis of polyphenols

[/vc_toggle][/porto_toggles][vc_separator style="solid"][/vc_column_inner][/vc_row_inner][vc_row_inner el_id="Support" css=".vc_custom_1588989658786{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Support" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" line_width="100" spacer_margin_bottom="20" main_heading_margin_bottom="5"][/porto_ultimate_heading][porto_toggles type="toggle-simple" size="toggle-sm"][vc_toggle title="Support" css=".vc_custom_1589706574581{padding-right: 30px !important;padding-left: 30px !important;}"]

Agilent Supplies for the Agilent 1260 Infinity LC

Agilent Technologies is committed to optimizing your laboratory’s productivity, so we have produced this list of the most commonly ordered supplies and parts for the 1260 Infinity Binary, Quaternary and Isocratic LC Systems.

InfinityLab LC Series Site Preparation Checklist

InfinityLab LC Series Site Preparation Checklist

[/vc_toggle][vc_toggle title="Supplemental Information" css=".vc_custom_1589706600395{padding-right: 30px !important;padding-left: 30px !important;}"]
[/vc_toggle][vc_toggle title="User Manuals" css=".vc_custom_1589706620193{padding-right: 30px !important;padding-left: 30px !important;}"]

Agilent InfinityLab Supplies for the Agilent 1260 Infinity II LC with Vialsampler

Agilent InfinityLab Supplies for the Agilent 1260 Infinity II LC with Vialsampler

Agilent InfinityLab Supplies for the Agilent 1260 Infinity II LC with Multisampler

Agilent InfinityLab Supplies for the Agilent 1260 Infinity II LC with Multisampler

Vialsamplers Agilent InfinityLab LC Series User Manual

This manual contains technical reference information about the Agilent 1260 Infinity II Vialsampler (G7129A), Agilent 1260 Infinity II Vialsampler (G7129C) and the Agilent 1290 Infinity II Vialsampler (G7129B).

Diode Array Detector WR and Multiple Wavelength Detector Agilent InfinityLab LC Series User Manual

This manual contains technical information about the Agilent 1260 Infinity II Diode Array and Multiple Wavelength Detectors G7115A WR and G7165A.

InfinityLab LC Series Multisamplers User Manual

Technical information about the Agilent 1290 Infinity II Multisampler (G7167B), 1260 Infinity II Multisampler (G7167A) and 1260 Infinity II Bio-inert Multisampler (G5668A).

InfinityLab LC Series Variable Wavelength Detectors User Manual

Technical information about the 1290 Infinity II Variable Wavelength Detector (G7114B) and the 1260 Infinity II Variable Wavelength Detector (G7114A).

InfinityLab LC Series Diode Array Detectors User Manual

Technical information about the Agilent 1290 Infinity II Diode Array Detector FS (G7117A), Diode Array (G7117B), and 1260 Infinity II Diode Array Detector HS (G7117C).

InfinityLab LC Series 1260 Infinity II Binary Pump User Manual

This manual covers the Agilent InfinityLab LC Series 1260 Infinity II Binary Pump (G7112B).

InfinityLab LC Series 1260 Infinity II Isocratic and Quaternary Pumps User Manual

Technical information about the Agilent 1260 Infinity II Isocratic Pump (G7110B), Quaternary Pump VL (G7111A), Quaternary Pump (G7111B) and Bio-inert Pump (G5654A).

Best Practices for Addressing Problems Associated With Unstable Solvents in an (U)HPLC Environment

This technote provides an overview on how to operate safely with unstable solvents in an (U)HPLC environment and how to avoid damage to the instrument or separation column.

[/vc_toggle][/porto_toggles][vc_separator style="solid"][/vc_column_inner][/vc_row_inner][vc_row_inner el_id="Tools" css=".vc_custom_1589705941004{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Tools" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" line_width="100" spacer_margin_bottom="20" main_heading_margin_bottom="5"]

LC Application Finder

Search for LC Application Notes and Technical Overviews
