490-PRO Micro GC System

[vc_row][vc_column width="1/4" is_sticky="yes" sticky_min_width="767" sticky_top="110" sticky_bottom="0"][porto_ultimate_heading main_heading="Product Details" main_heading_font_weight="" sub_heading_font_weight="" alignment="left"][/porto_ultimate_heading][porto_sidebar_menu nav_menu="26"][/vc_column][vc_column width="3/4"][vc_row_inner el_id="Features" css=".vc_custom_1588955131902{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Features" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" main_heading_margin_bottom="5" line_width="100" spacer_margin_bottom="20"]

• • All features of the base instrument, plus:
  • Intuitive software interface allows you to quickly set up and optimize methods, calibrate and validate the application
  • Continuous, autonomous operation, with single or multi stream analysis are automatically transferred to an external system of choice
  • On-board data handling and automation automatically calculates and validates the analysis results and performs automated calibrations
  • Optional software packages for energy calculations (according to ISO 6976, GPA 2172, ASTM D3588 and GOST 22667), history logging (up to 35 days) and Serial Modbus
  • Does not use any flammable gases and requires only small quantities of inert sample gas for analysis and monitoring
  • Industry standard 19” rack mount capabilities

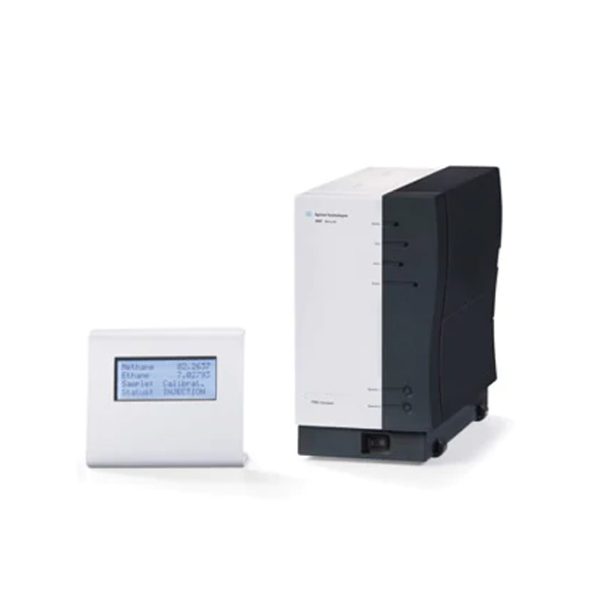

  • Available accessories include: Stream selection valves, micro-gasifier, Genie membrane filters, LCD display, extension boards with additional relays, digital I/O and 4-20mA output
  • Powerful PROstation software allows you to quickly set up and optimize the initial analysis method, calibrate and validate the application. Then, the computer is disconnected and the on-board data handling system takes over complete operation of the 490-PRO Micro GC.
  • Autonomous Operation offers continuous operation, after initial setup, the raw or processed results are automatically transferred to an external system, typically a process control computer via one of a variety of industry-standard communication protocols, including ModBus, RS-485, TCP/IP, RS-232, and FTP-Webserver.
  • Safe operation is ensured in critical environments where operation safety is of paramount importance because the 490-Pro Micro GC does not use any flammable gases and requires only small quantities of inert sample gas for analysis and monitoring.
  • Fast, precise gas analysis in seconds, not minutes achieved through the use of narrow-bore capillary, PLOT or micro-packed columns to bring improved product quality and more exact product valuation to your applications.

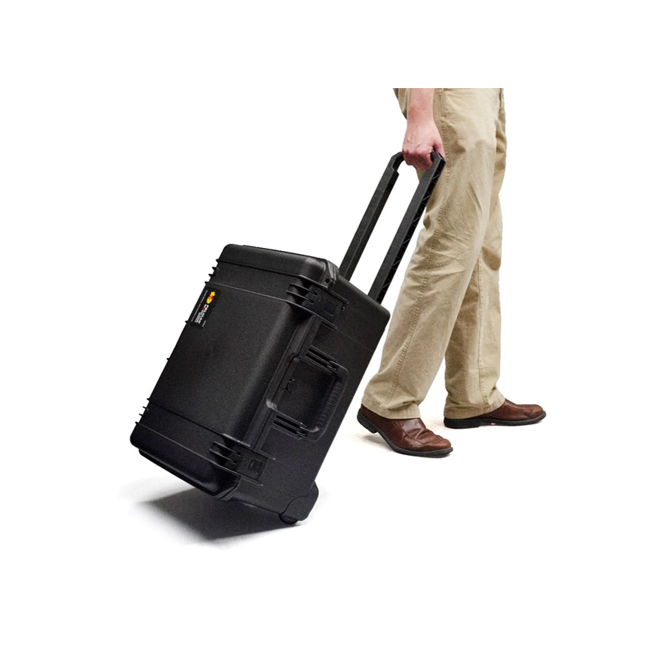

  • Quick and easy start up so you can get the results and ruggedness you demand in the lab and in the field. Start-up is quick, easy and seamless with electronic data sheets to store operational history and the last method used for each GC channel. You can move from location to location and get results in minutes.
  • Flexibility to run in the laboratory, at-line or on-line with up to four independent analytical GC channels, each with pneumatics, injector, column and detector. Quickly reconfigure for any application including oil and gas exploration, refining, natural gas production and distribution, fuel cell development, and specialty gas production.
  • Increase Monitoring Frequency through micro-electronic gas control with time-programmable backflush so you can inject samples while eliminating components that could foul the column and reduce lifetime. Extremely fast analysis for continuous process monitoring and control ensures faster and better decisions which lead to higher quality end-products.
  • Long term reliability is achieved through advanced micro-machining components for the injector and thermal conductivity detector.

[/porto_ultimate_heading][vc_separator][/vc_column_inner][/vc_row_inner][vc_row_inner el_id="Literature" css=".vc_custom_1588988346649{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Literature" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" line_width="100" spacer_margin_bottom="20" main_heading_margin_bottom="5"][/porto_ultimate_heading][porto_toggles type="toggle-simple" size="toggle-sm"][vc_toggle title="Key Literature" css=".vc_custom_1589127643350{padding-right: 30px !important;padding-left: 30px !important;}"]

Agilent 490 Micro GC Brochure

Agilent's Micro GC technology has been developed over decades giving you greater confidence in your analysis results and decision-making.

• Brochures
• English
• 26 Aug 2016
• 3.28 MB
• PDF

Agilent 490-PRO Micro GC for Process Monitoring

The 490-PRO Micro GC can be used for many industrial applications, from refinery gas composition, to component trace detection, down to parts per million levels.

• Data Sheets
• English
• 10 Jul 2015
• 2.01 MB
• PDF

Analysis of Liquefied Ethane Product Using the Agilent Process Micro Gas Chromatograph

This application note describes the use of the Agilent 490-PRO Micro GC for the analysis of liquefied ethane product.

• Application Notes
• English
• 25 Apr 2013
• 526.89 KB
• PDF

[/vc_toggle][vc_toggle title="Application Notes" css=".vc_custom_1589127660998{padding-right: 30px !important;padding-left: 30px !important;}"]

Ultra-Fast Refinery Gas Analysis with a 490 Micro GC 3-Channel Configuration Equipped with a Backflush-to-Detector Option

Application note describint the use of the Agilent 490 Micro GC with backflush to detector option for afast and accruate analysis of refinery gas.

• Application Notes
• English
• 11 Jul 2018
• 1.17 MB
• PDF

One-Minute NGA Analysis Based on a Backflush-to-Detector Channel

Application note describing the use of the Agilent 490 Micro GC with backflush to detector option for fast and accurate analysis of Natural Gas

• Application Notes
• English
• 11 Jul 2018
• 724.90 KB
• PDF

Analysis of Impurities in SF6 Using the Agilent 490 Micro GC

This application note shows a fast and reliable solution for low level impurity analysis in SF6 using the Agilent 490 Micro GC.

• Application Notes
• English
• 06 Apr 2017
• 709.34 KB
• PDF

Separation of C6 Olefins on an Alumina Plot Column Using the Agilent Micro GC

The 490 Micro GC with a 10-m Al2O3/KCl column completes the separation of n-hexane, trans and cis-hexane, and 1-hexane in just over 1 minute.

• Application Notes
• English
• 21 Jul 2016
• 611.96 KB
• PDF

Composition Analysis of Contaminated and Counterfeit Refrigerants Using the Agilent 490 Micro GC

The importance of refrigerant composition analysis became clear when contaminated and counterfeit refrigerant 1,1,1,2-tetrafluorethane (R134a) appeared on the market.

• Application Notes
• English
• 10 Jul 2015
• 459.51 KB
• PDF

Mud Logging – Rapid Analyses of Well Gases with an Agilent Micro GC

Oil and gas exploration operations require the analysis of dissolved natural gas in samples from the well within short run times.

• Application Notes
• English
• 02 Feb 2015
• 671.80 KB
• PDF

Hydrogen Detection with a TCD using Mixed Carrier Gas on the Agilent Micro GC

This application note highlights percentage level analysis of hydrogen on an Agilent Micro GC using a mixed carrier gas.

• Application Notes
• English
• 23 May 2014
• 760.64 KB
• PDF

Analysis of Sulfur Compounds in Natural Gas Using the Agilent 490 Micro GC

Gas chromatography is a proven technology to analyze natural gas and its impurities.

• Application Notes
• English
• 15 Jul 2013
• 691.71 KB
• PDF

An Agilent Process Micro GC Used For the Analysis of Propane and Butane Product Gas Streams (LPG)

This note describes the use of an Agilent 490-PRO Micro GC for the analysis of liquefied propane and butane (LPG) streams for plant quality control and plant processing.

• Application Notes
• English
• 25 Apr 2013
• 449.08 KB
• PDF

[/vc_toggle][vc_toggle title="Posters" css=".vc_custom_1589127689630{padding-right: 30px !important;padding-left: 30px !important;}"]

Natural Gas Infographic

Fuel the global economy by meeting demands for quality natural gas products

• Posters
• English
• 18 Feb 2014
• 4.84 MB
• PDF

[/vc_toggle][vc_toggle title="Technical Overviews" css=".vc_custom_1589127702669{padding-right: 30px !important;padding-left: 30px !important;}"]

Fast and Reliable Trace Gas Analysis – Improved LODs for the Agilent 490 Micro GC

Continuous quality improvements has resulted in lower limits of detection for our gas analysis platform, the Agilent 490 Micro GC.

• Technical Overviews
• English
• 08 Dec 2015
• 434.56 KB
• PDF

[/vc_toggle][/porto_toggles][vc_separator][/vc_column_inner][/vc_row_inner][vc_row_inner el_id="Support" css=".vc_custom_1588989658786{margin-bottom: 30px !important;}"][vc_column_inner][porto_ultimate_heading main_heading="Support" main_heading_font_weight="" sub_heading_font_weight="" alignment="left" spacer="line_only" spacer_position="middle" line_height="1" line_width="100" spacer_margin_bottom="20" main_heading_margin_bottom="5"][/porto_ultimate_heading][porto_toggles type="toggle-simple" size="toggle-sm"][vc_toggle title="User Manuals" css=".vc_custom_1589127727793{padding-right: 30px !important;padding-left: 30px !important;}"]

490 Micro GC Internal and External Mount Genie Filter Brackets Installation

490 Micro GC Internal and External Mount Genie Filter Brackets Installation

• User Manuals
• English
• 27 Apr 2020
• 1.34 MB
• PDF

Micro GC PRO Extension Boards Packing List

Micro GC PRO Extension Boards Packing List

• User Manuals
• English
• 25 Apr 2020
• 425.31 KB
• PDF

490-PRO Micro Gas Chromatograph User Manual

490-PRO Micro GC User Manual for use with the 490 Micro GC, 490-PRO Micro GC, micro gas chromatograph, portable gc

• User Manuals
• English
• 30 Sep 2016
• 28.09 MB
• PDF

[/vc_toggle][/porto_toggles][vc_separator][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]
